分類:紅外線加熱燈管
瀏覽:16316
朗普科技可根據客戶需求,提供定制加熱解決方案。

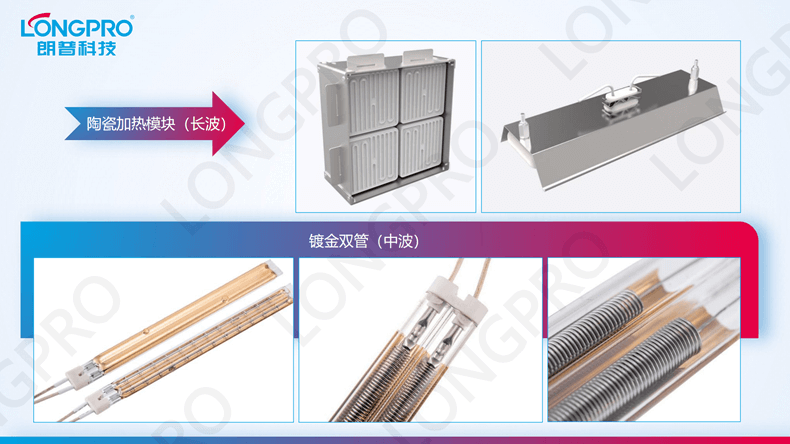

產品型號:中波雙管系列

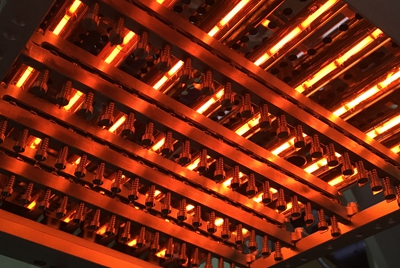

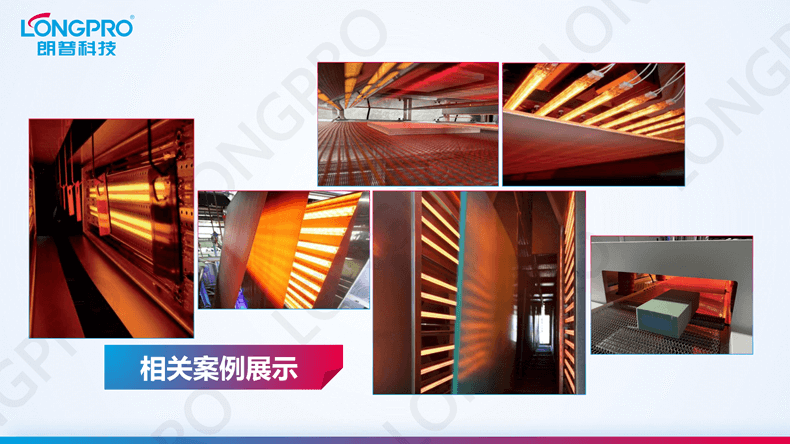

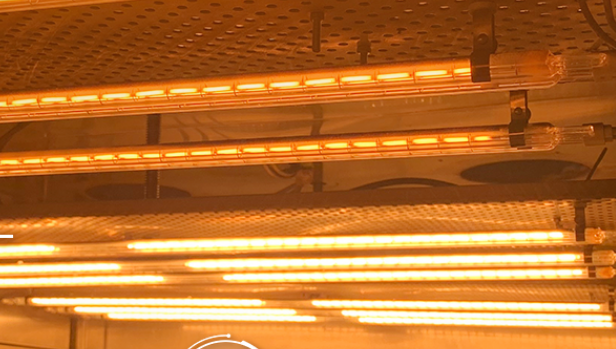

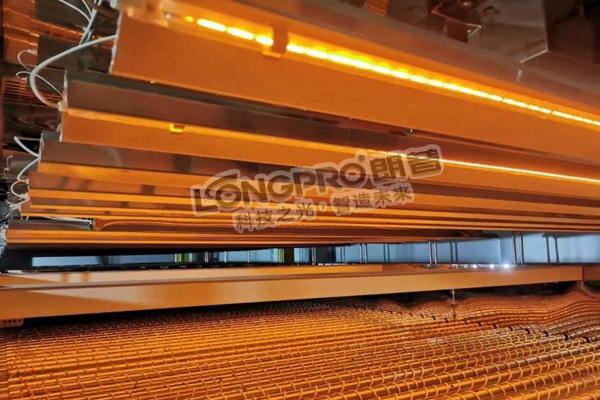

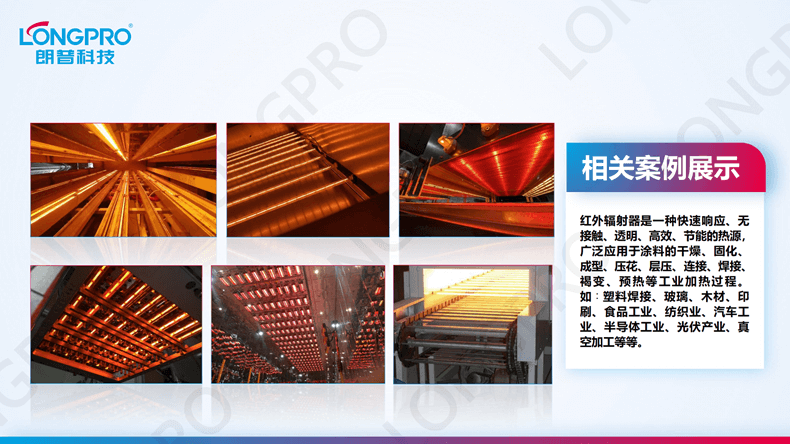

應用領域:紙張烘干、絲網印刷的烘干、復合玻璃的切割、玻璃退火加工、纖維加熱、紅外焊接、塑料加熱、汽車車身、零部件烤漆、成型之前預熱復合材料、涂裝烘干固化、風力發電機扇葉外表涂層烘干、紙張的涂覆、上色、膠化、上光等的干燥;薄膜拉伸、塑料焊接、科研單位等等

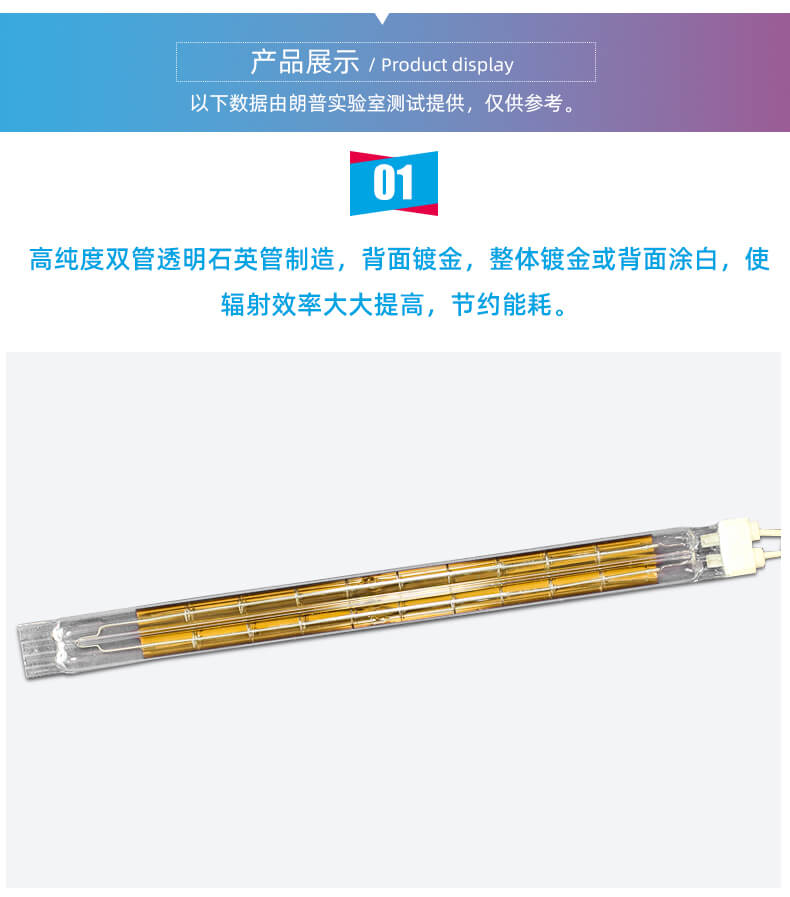

產品描述:?
1、啟動速度快,熱慣性小。
2、光波具有穿透性。由內而外對目標物體進行加熱,速度快,烘干效果好。
3、非接觸式加熱,無須空氣介質,即使真空中也能加熱。

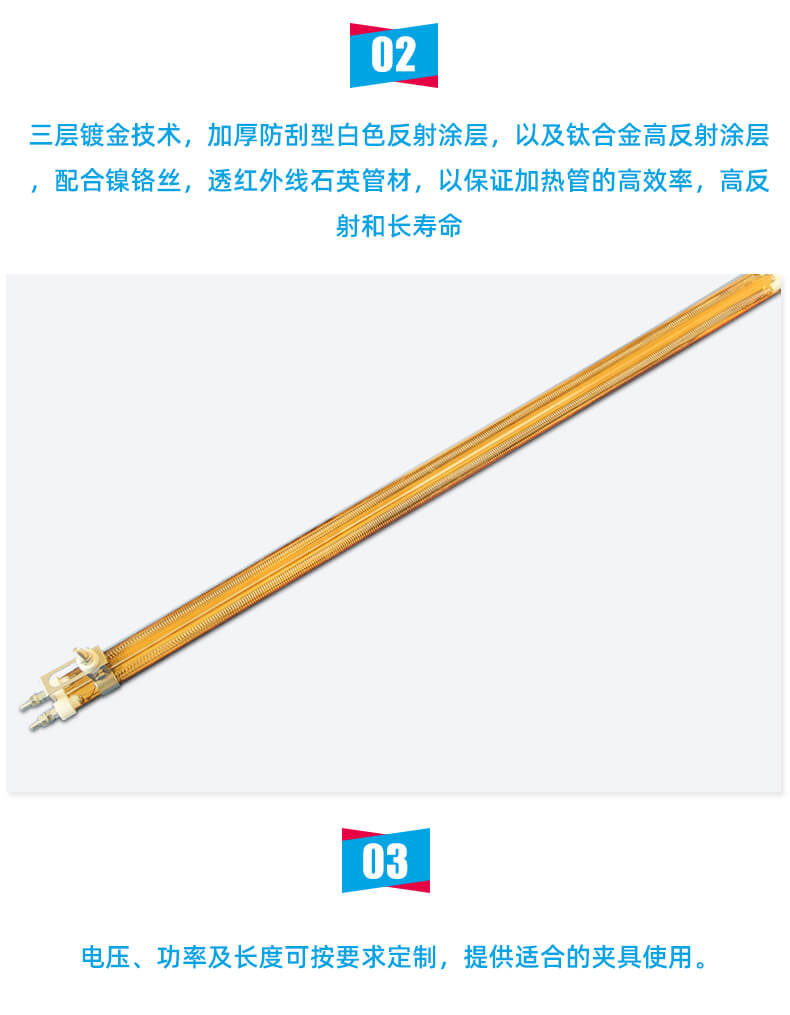

4、鍍金反射涂層,對物體進行定向,聚集加熱,大幅提高熱效率
5、可根據被加熱材料的特性進行設計,匹配材料易于吸收的波長,以最小能源實現最佳加熱效果
產品訂購熱線:15728183143





?

快速選型:
根據加熱場所,加熱物體和材料,加熱溫度,以及其他技術要求來定,我司提供技術支持!

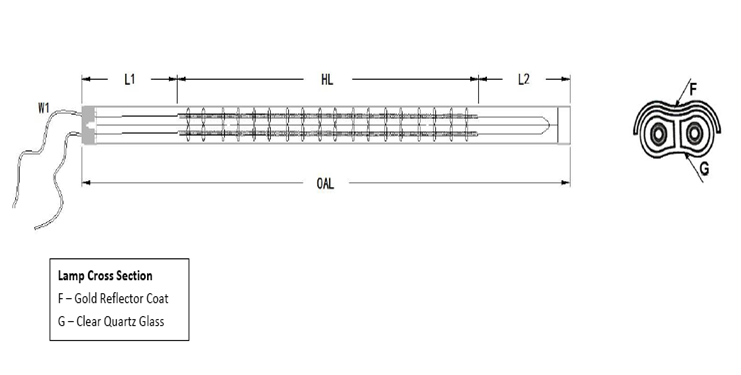

中波紅外線燈管可配備的高效反射層示意:
反射層分半鍍金或半涂白兩種

中波紅外線加熱管規格表:
|
 Cold End(mm)? 冷端  |
 ? Cross?Size(mm)? ? 外觀尺寸? ? ? ? ?  |
 ? ?OAL(mm)?? 總長  |
 ? ?HL(mm)? ?? 加熱長  |
 ? Voltage(V)? ? 燈電壓  |
 ? ?Wattage(W)?? 燈功率  |
 ? Wave Length?? 波段  |
 Finish ? ?外觀? ? ? ??  |
 ? ?Wire?Connection 接線方式  |
60/60  |
15*33  |
1420  |
1300  |
230  |
3250  |
MW  |
 Gold Reflector  |
One Side  |
50/50  |
15*33  |
1300  |
1200  |
230  |
2500  |
MW  |
 Gold Reflector  |
One Side  |
50/50  |
15*33  |
1100  |
1000  |
415  |
2500  |
MW  |
 Gold Reflector  |
One Side  |
35/35  |
15*33  |
1100  |
1030  |
415  |
2500  |
MW  |
 Gold Reflector  |
One Side  |
75/25  |
11*23  |
1100  |
1000  |
400  |
3000  |
SW  |
 Gold Reflector  |
One Side  |
75/25  |
11*23  |
600  |
500  |
400  |
3000  |
SW  |
 Gold Reflector  |
One Side  |
40/25  |
11*23  |
405  |
340  |
230  |
1200  |
SW  |
 Gold Reflector  |
One Side  |
75/25  |
11*23  |
300  |
200  |
230  |
1500  |
SW  |
 Gold Reflector  |
One Side  |
75/75  |
11*23  |
1150  |
1000  |
400  |
6000  |
SW  |
 Gold Reflector  |
Two Side  |
75/75  |
11*23  |
650  |
500  |
230  |
3000  |
SW  |
 Gold Reflector  |
Two Side  |
75/75  |
11*23  |
850  |
700  |
230  |
4200  |
SW  |
 Gold Reflector  |
Two Side  |
75/25  |
11*23  |
350  |
250  |
230  |
1875  |
SW  |
 Gold Reflector  |
One Side  |
75/25  |
11*23  |
1100  |
1000  |
415  |
2500  |
SW  |
 Gold Reflector  |
One Side  |
40/10  |
11*23  |
400  |
350  |
230  |
1200  |
SW  |
 Gold Reflector  |
One Side  |
75/25  |
11*23  |
400  |
300  |
200  |
1800  |
SW  |
 Gold Reflector  |
One Side  |
75/25  |
11*23  |
350  |
250  |
230  |
1000  |
SW  |
 Gold Reflector  |
One Side  |
75/25  |
11*23  |
400  |
300  |
230  |
1875  |
SW  |
 Gold Reflector  |
One Side  |
40/25  |
11*23  |
1100  |
35/1035  |
415  |
3500  |
SW  |
 Gold Reflector  |
One Side  |
?注:以上數據均由本司提供,僅供參考。
